CubuSynth - QuadVCLFO (DIY)

DIY version of the CubuSynth QuadVCLFO module

Difficulty Level: 2/10
Build Time: 0.5-1 hour
Low component count, easy build, SMD pre-soldered
Component count: 22

- size: 10hp

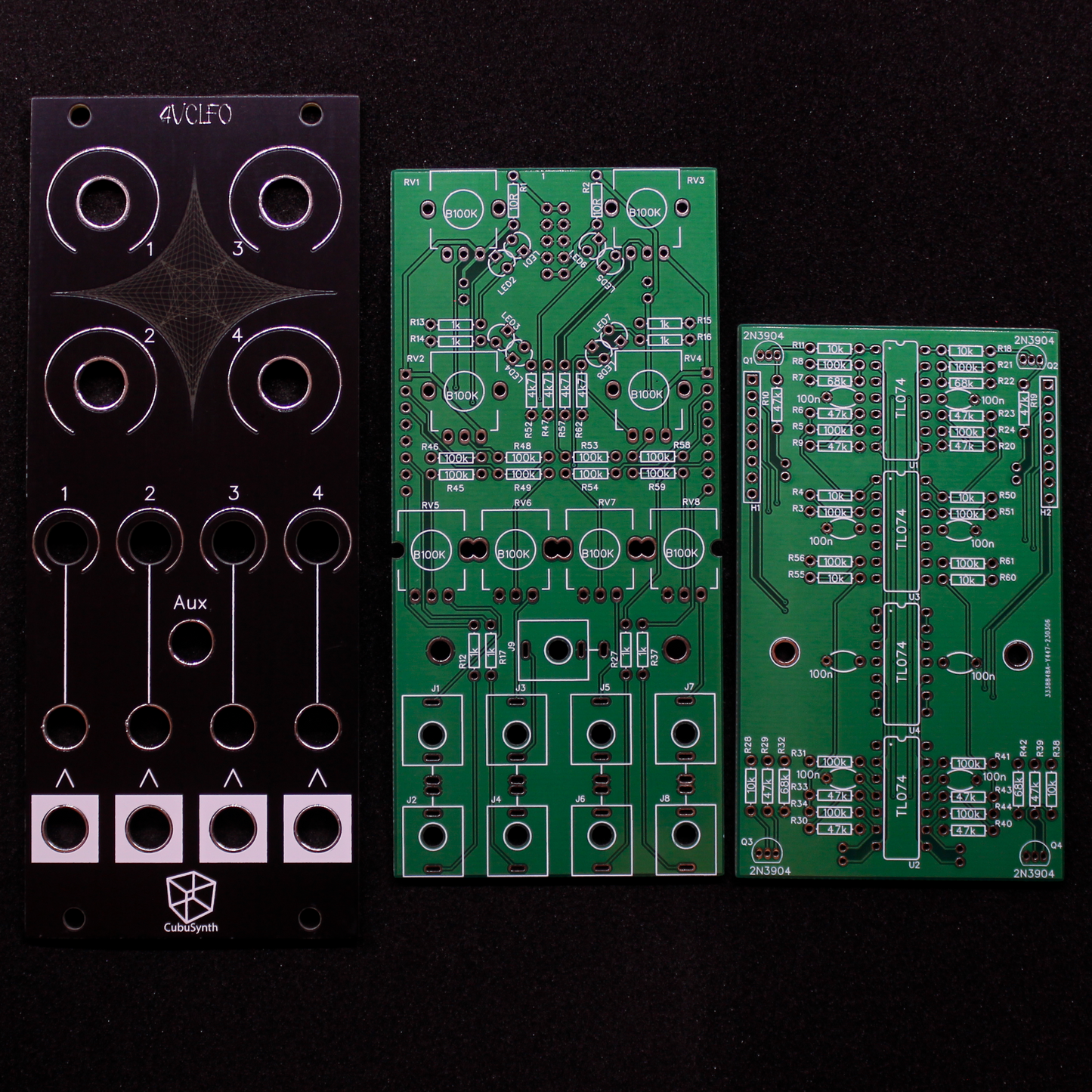

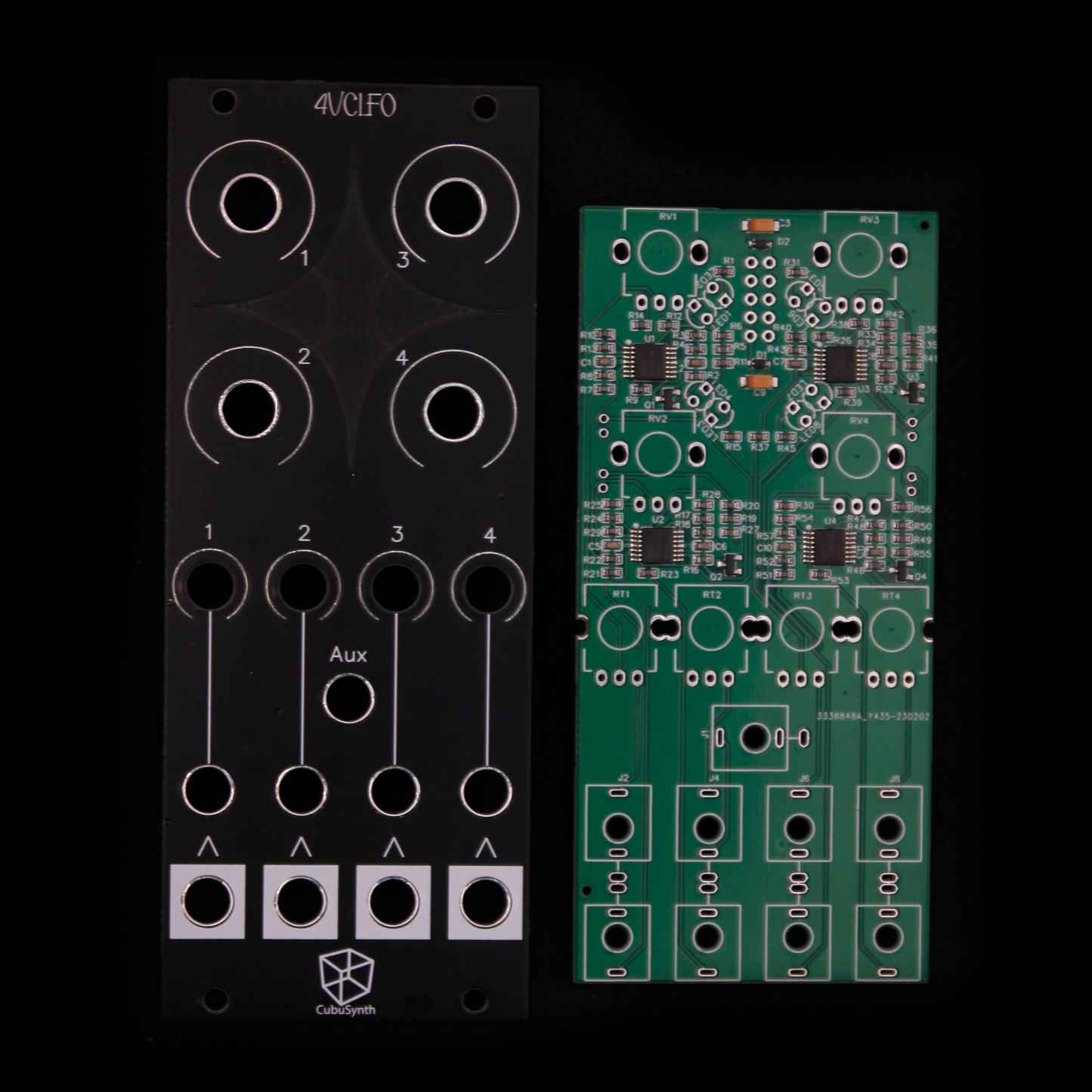

- single SMD Pre-soldered PCB design

- 10 pin power

12 mA +12V
12 mA -12V

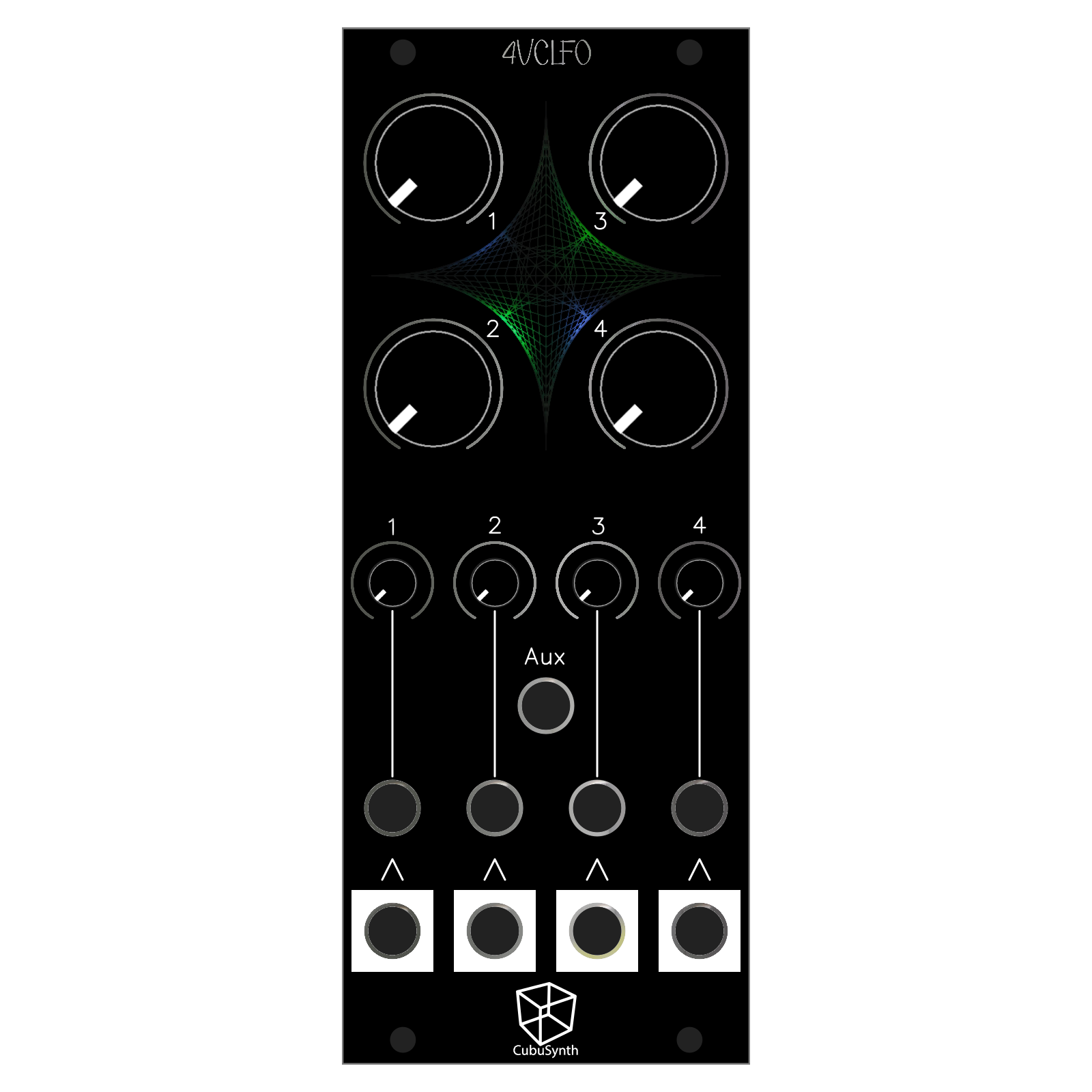

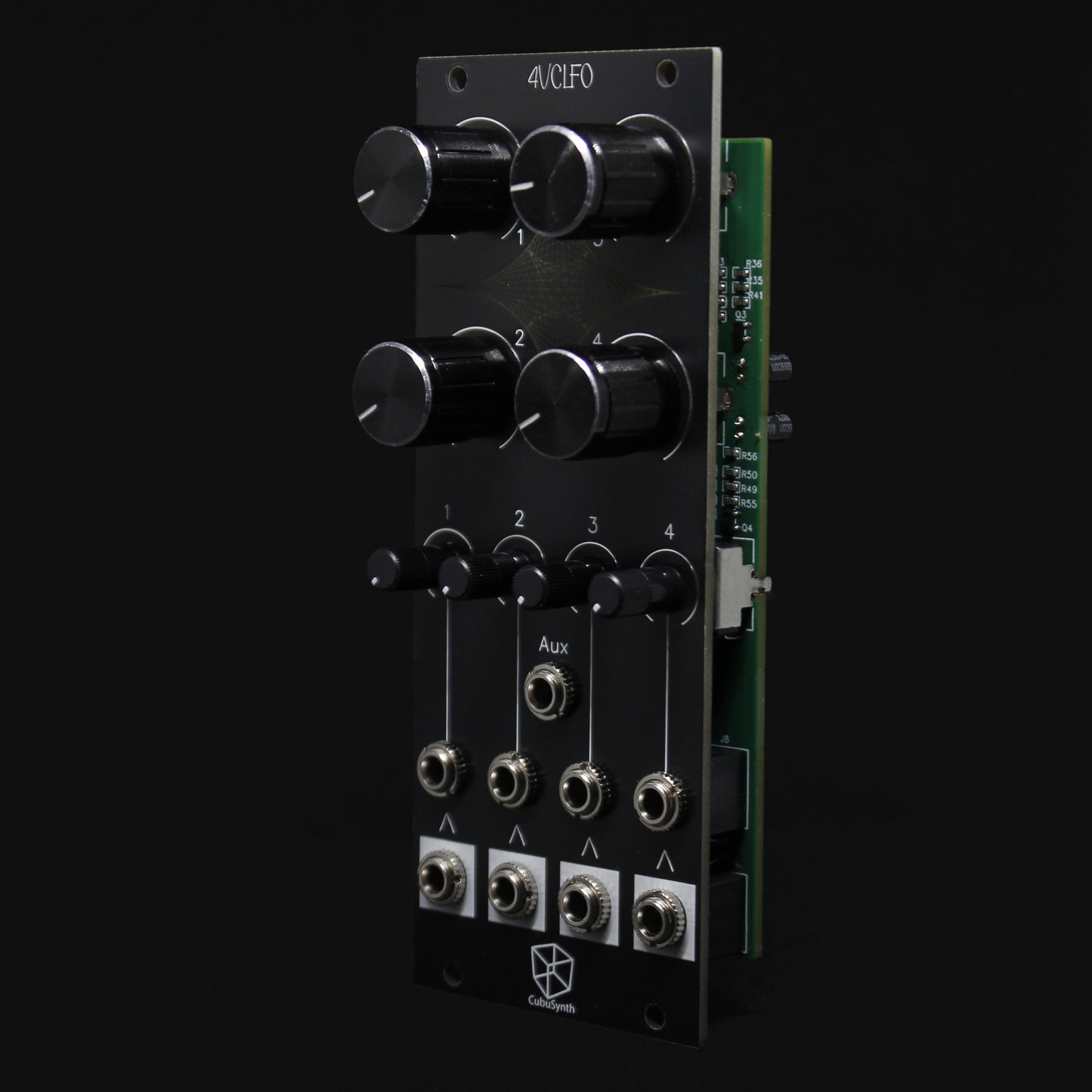

The 4VCLFO is four LFOs with triangle Outputs in 10hp. It features a knob for the Frequency of each LFO and CV inputs with attenuators.
The „Aux“ input is normalized to the four CV inputs, so you can modulate all LFOs with one signal at the same time. Plugging a cable into the CV input breaks its connection from the aux input.
This way you can create more interesting Modulations for your Patches.

You can easily cutomize LFO speeds to your liking by changing capacitor values on the back.
