CubuSynth - QuadVCLFO

Key features

- 4 analog Triangle Oscillators
- Frequency knob and CV input with attenuator per channel
- Aux input for modulation of all four channels
- Visual Representation of LFO state

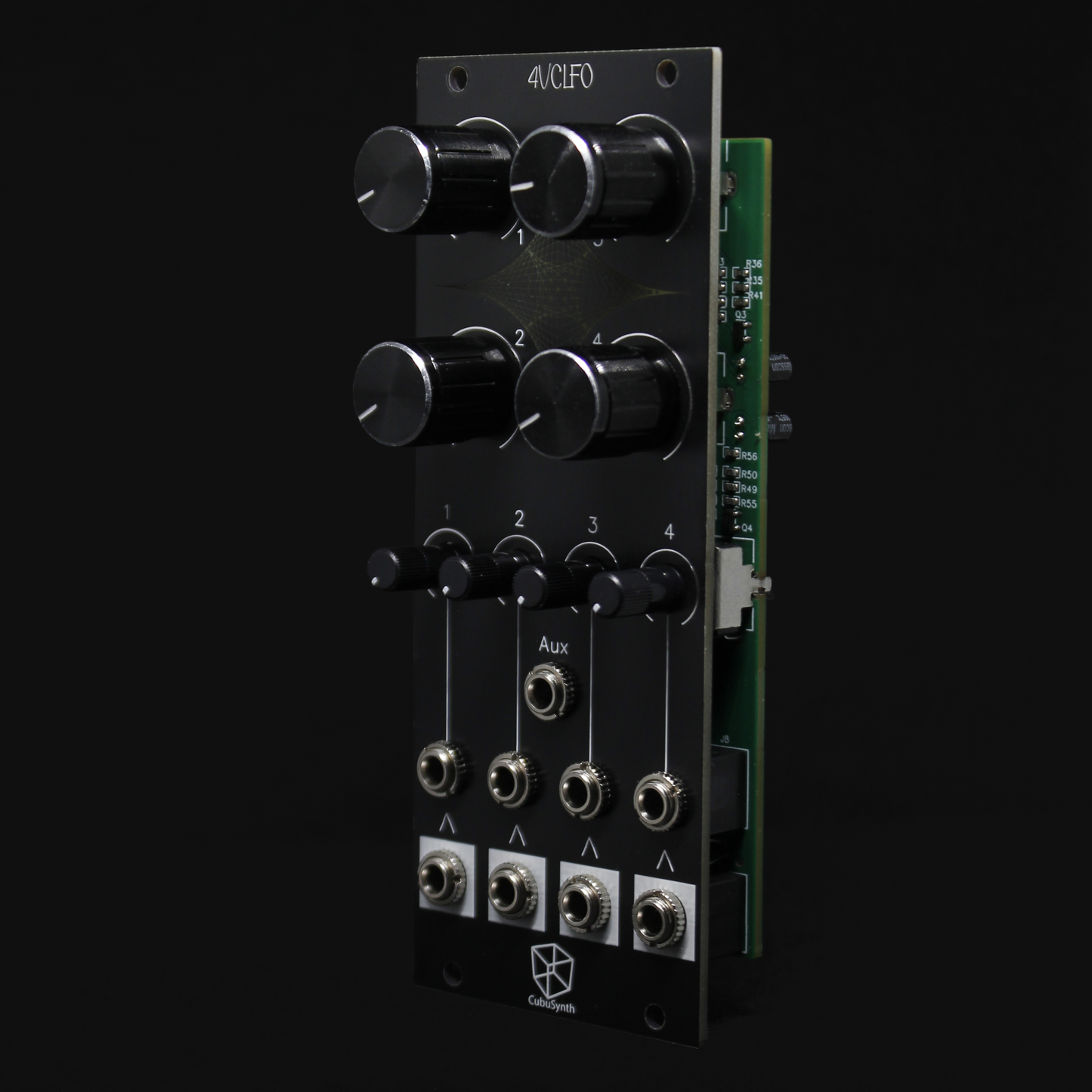

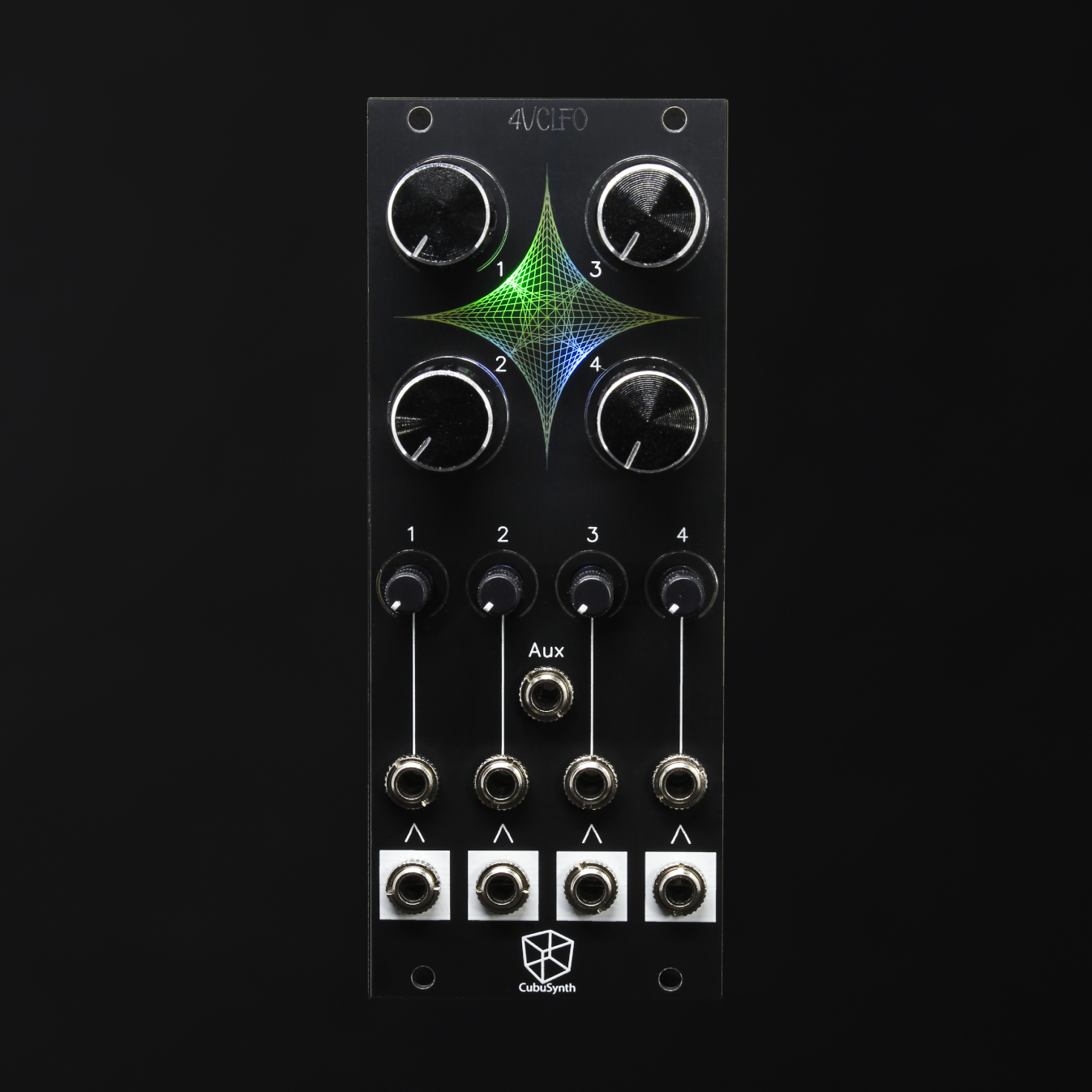

Quad Analog voltage controlled Low frequency Oscillator

The 4VCLFO is four LFOs with triangle Outputs in 10hp. It features a knob for the Frequency of each LFO and CV inputs with attenuators.
The „Aux“ input is normalized to the four CV inputs, so you can modulate all LFOs with one signal at the same time. Plugging a cable into the CV input breaks its connection from the aux input.
This way you can create more interesting Modulations for your Patches.

You can easily cutomize LFO speeds to your liking by changing capacitor values on the back.

Specifications

- Size: 10HP x 3U / 50mm x 129mm
- Depth: 24mm (measured from the front panel)
- Max. Current Draw:
+12V: +12mA
-12V: -12mA

Modulargrid

DIY info (SMD version):
Difficulty Level: 2/10
Build Time: 0.5-1 hour
Low component count, easy build, SMD pre-soldered
Component count: 22

PCB+Panel (SMD-Pre-soldered) pack contains:
- PCB with all SMD Pre-soldered
- Front Panel

PCB+Panel (TH) pack contains:
- Main PCB
- Control PCB
- Front Panel

The Full DIY contains the SMD Pre-soldered PCB version and all components to build the Module
