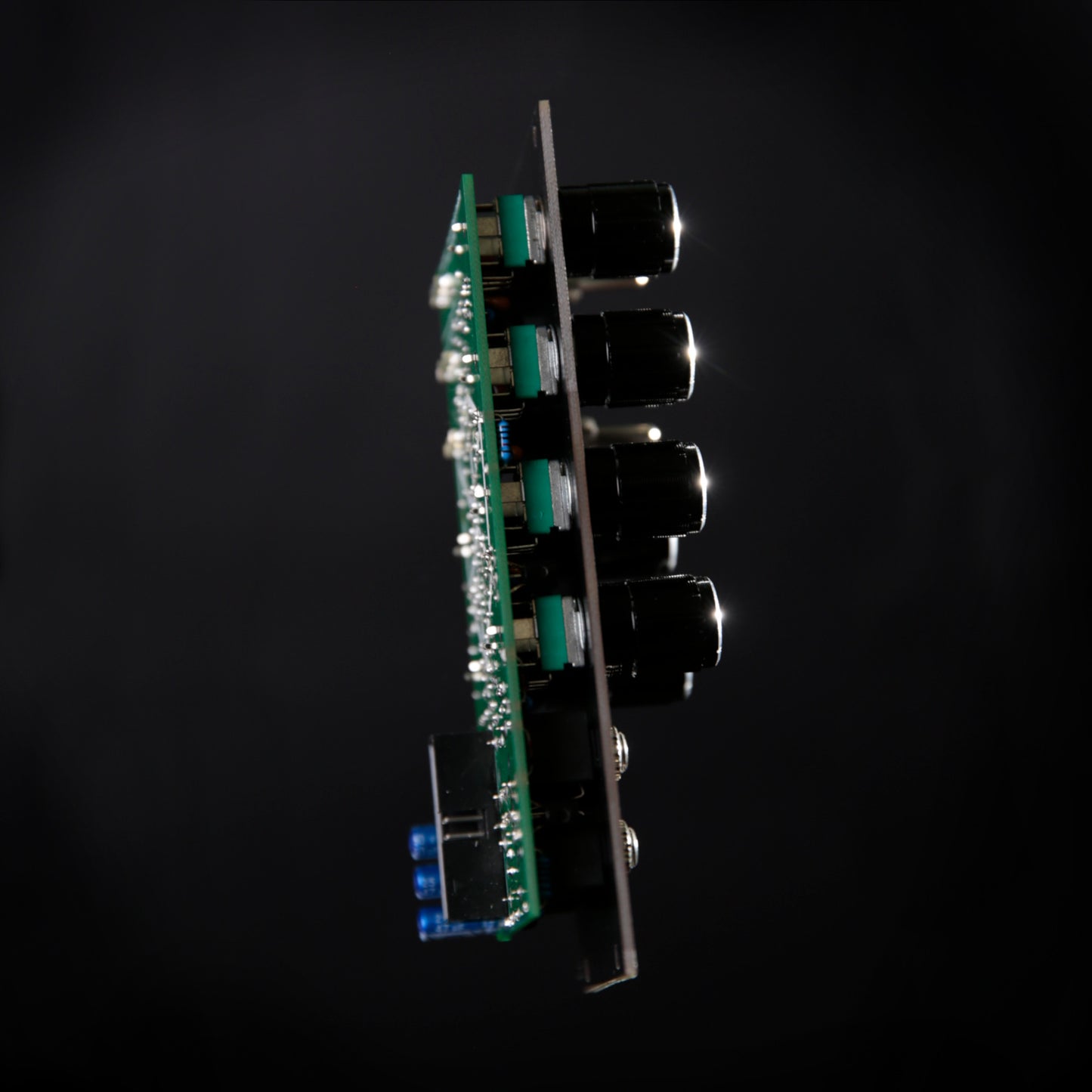

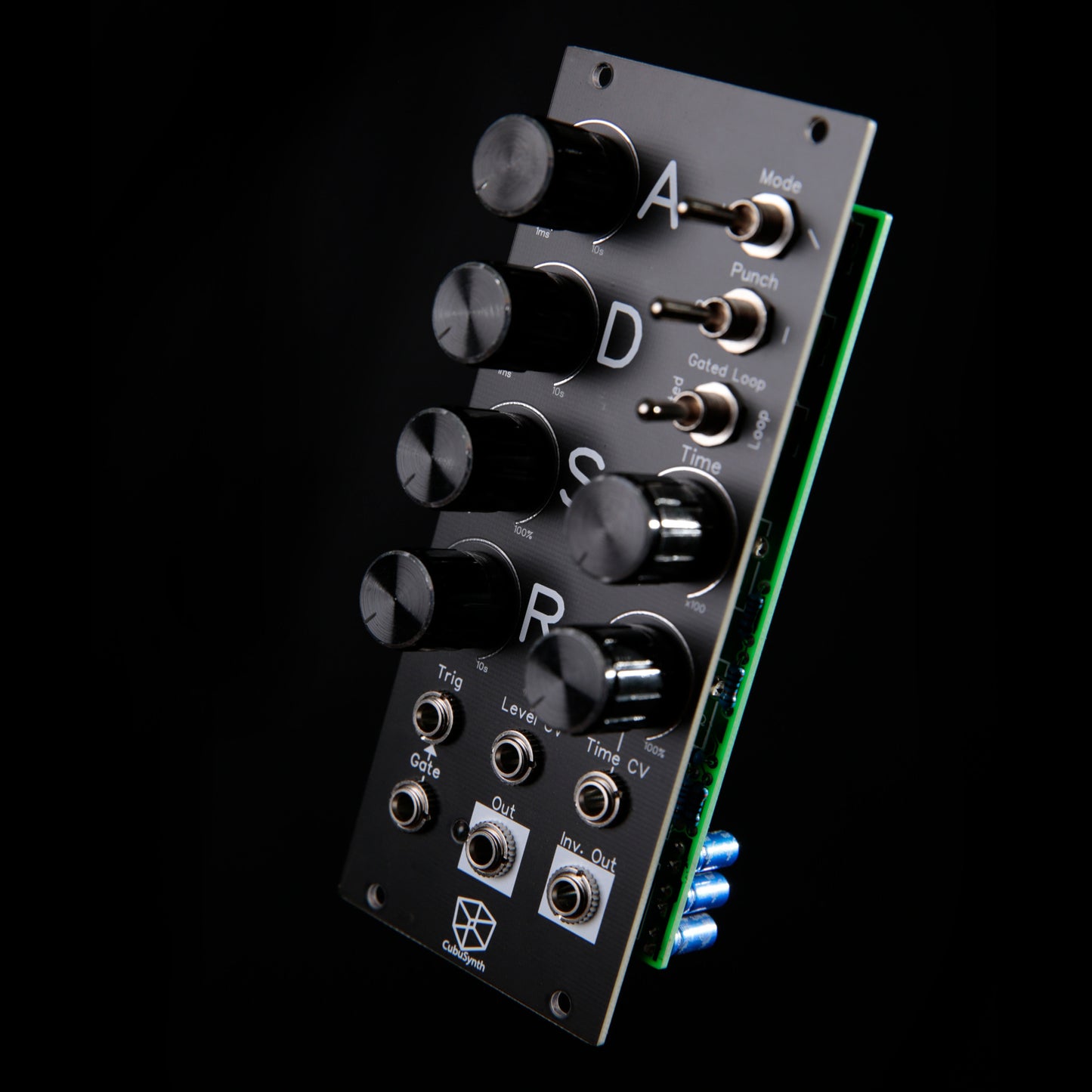

CubuSynth - ADSR (DIY)

DIY version of the CubuSynth ADSR module

Difficulty Level: 4/10
Build Time: 1~2 hours
Low component count, quite easy build
Component count: 84

- size: 10hp

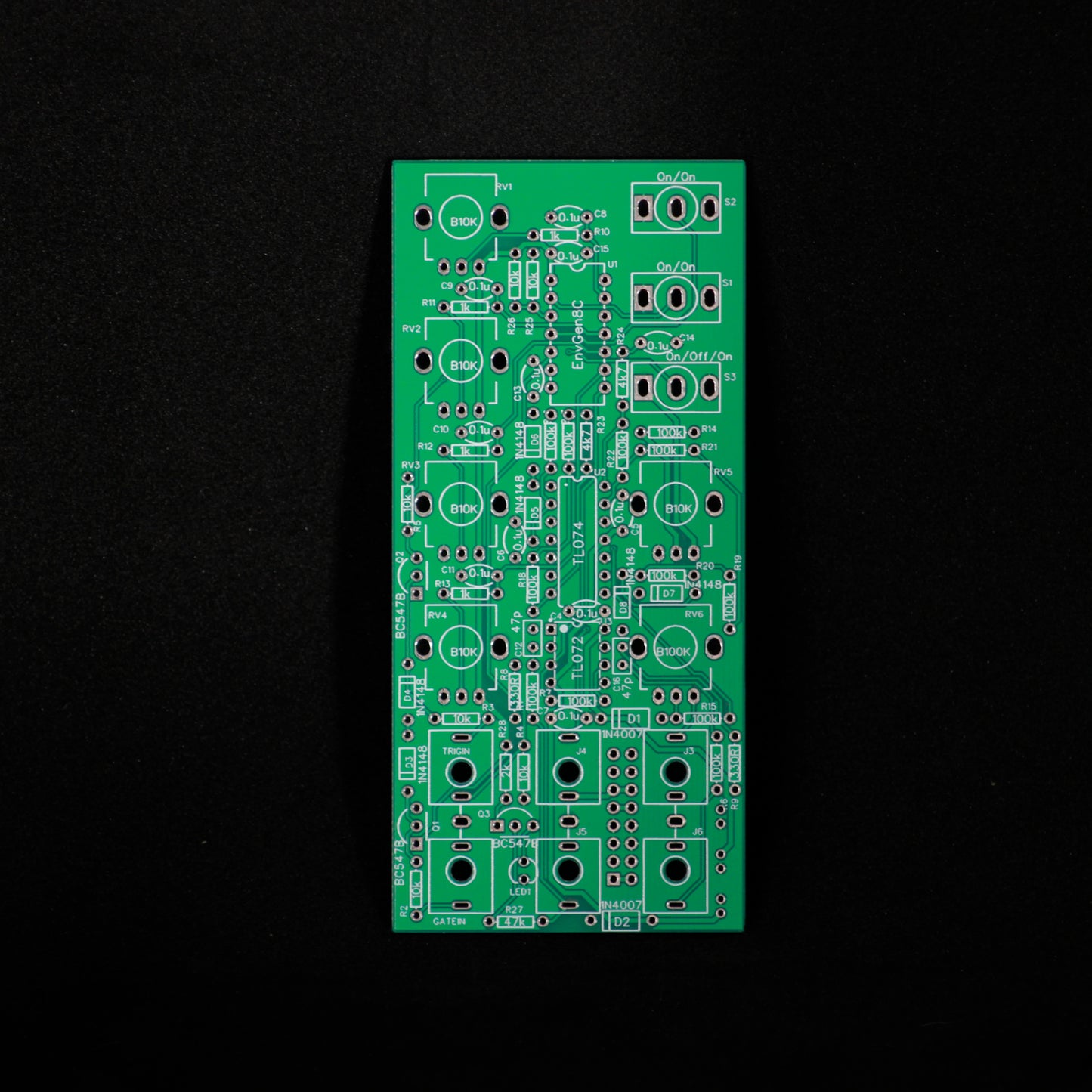

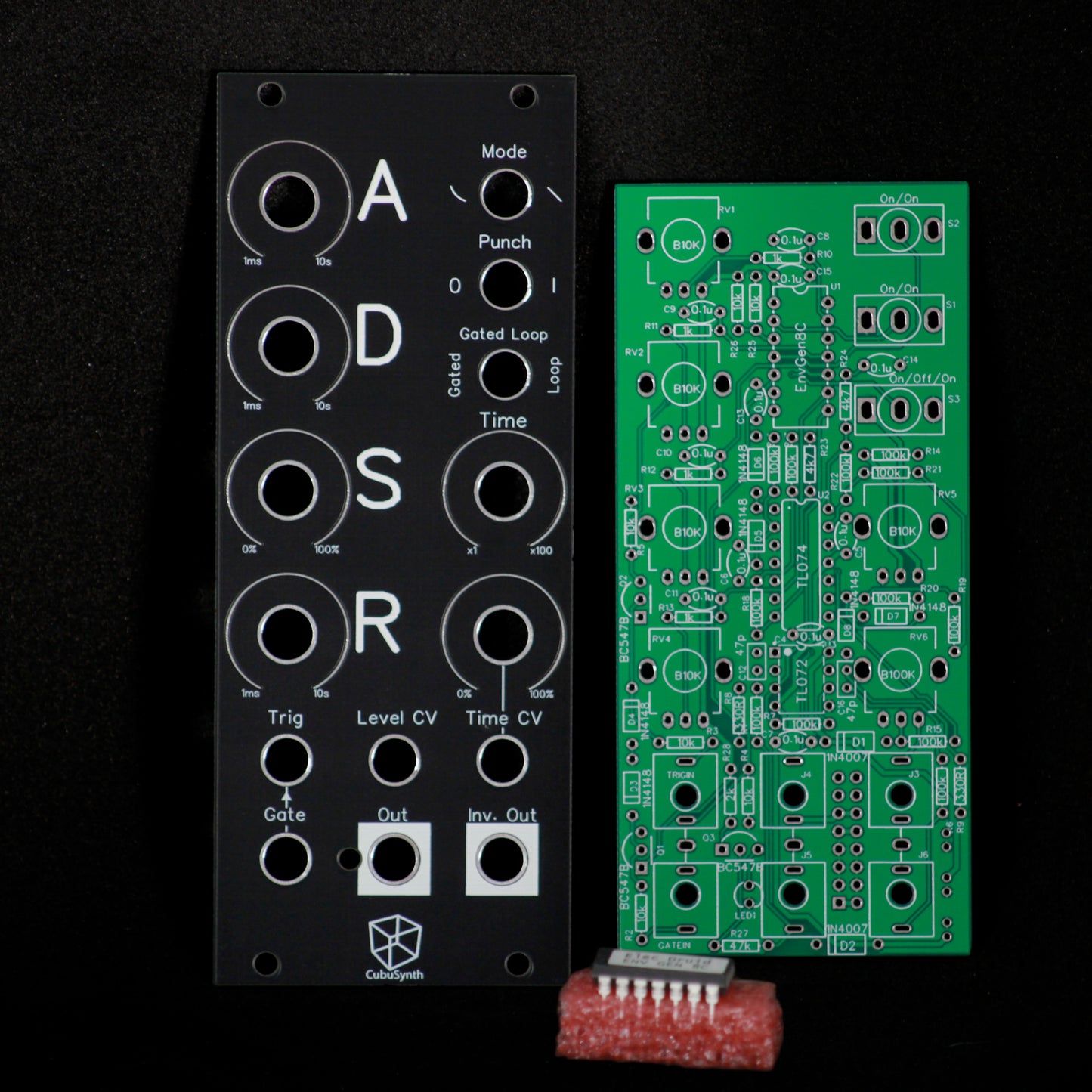

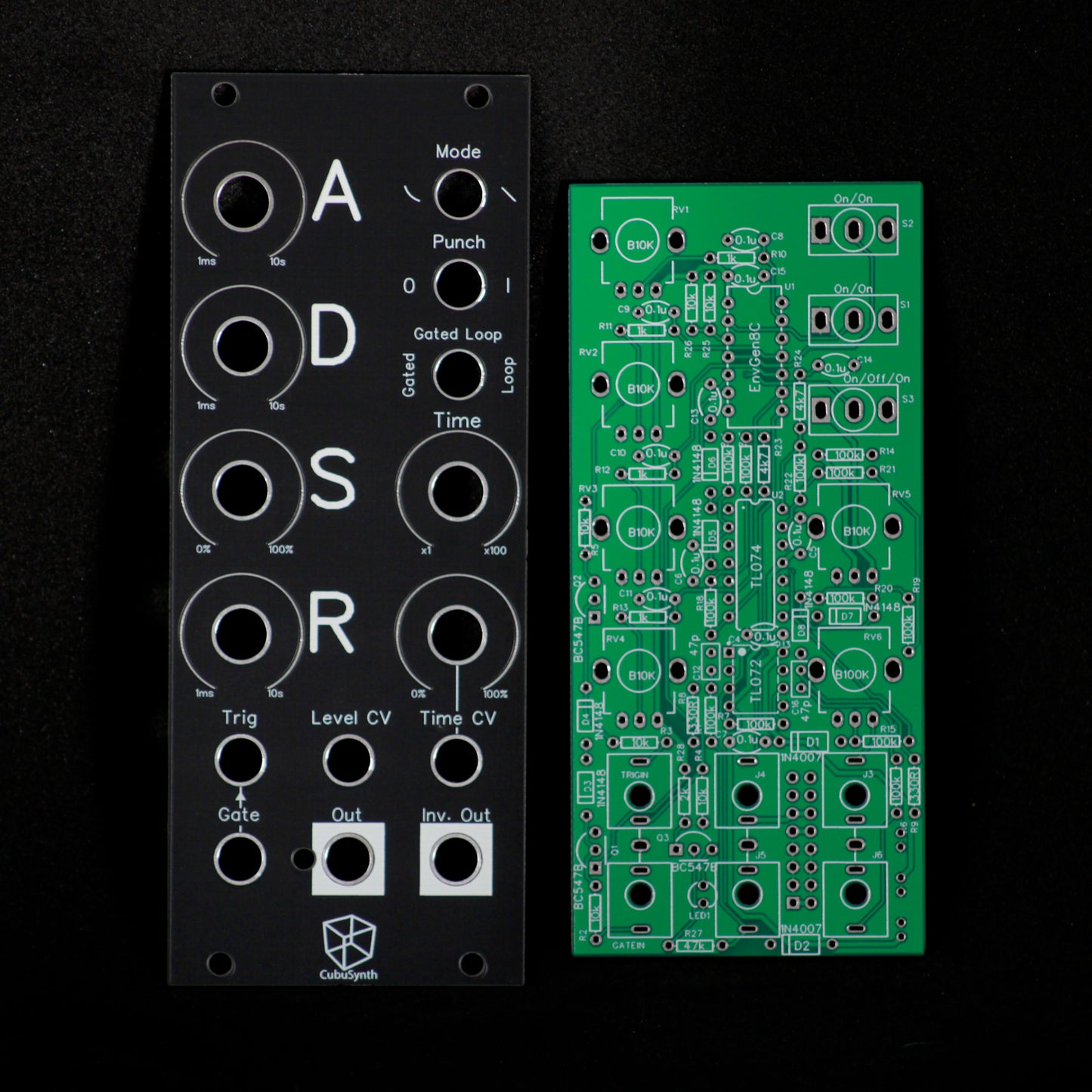

- single Thru-Hole PCB design

- GATE and TRIGGER inputs for retriggering

- MODE CV that allows selection of normal ADSR, Gated looping, or full LFO-style Looping mode

- LEVEL CV for additional Volume control / Velocity input (normalized to +5V)

- 16 pin power (uses 5V Rail / no onboard regulator)

16 mA +12V
16 mA -12V
70 mA 5V

The CubuSynth ADSR is based on the ElectricDruid EnvGen8. The TIME CV makes an excellent modulation input for either envelope modulation or LFO frequency modulation. With the Level CV you can add dynamics without the need for an extra VCA. It also adds a PUNCH input which holds the maximum level for a few milliseconds before starting the Decay stage. This is very useful for adding extra punch to short percussive envelopes.

Build documents

ENV GEN 8C Datasheet
