CubuSynth - Exhaust / Engine Expander (DIY)

Please contact us if you have Engine V1 and would like to buy the V1 Exhaust.

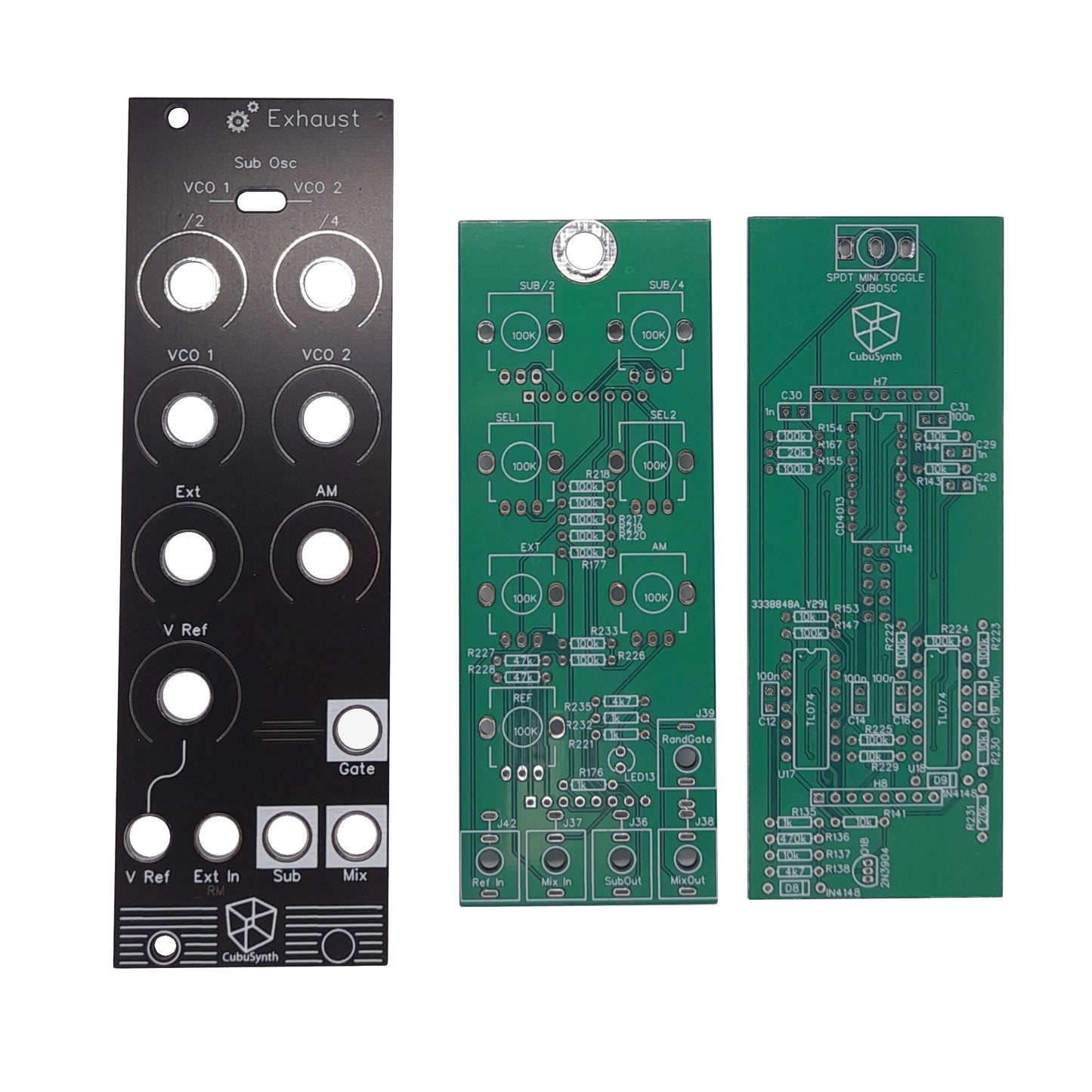

DIY version of the CubuSynth Exhaust / Engine Expander module

Difficulty Level: 3/10
Build Time: 2~3 hours
Low component count, quite easy build
Component count: 71

- size: 8hp

- Sub-Octave generator

- Mixer for different Signals from the Main Module

- Random Gate Output with "Probability" Knob and CV

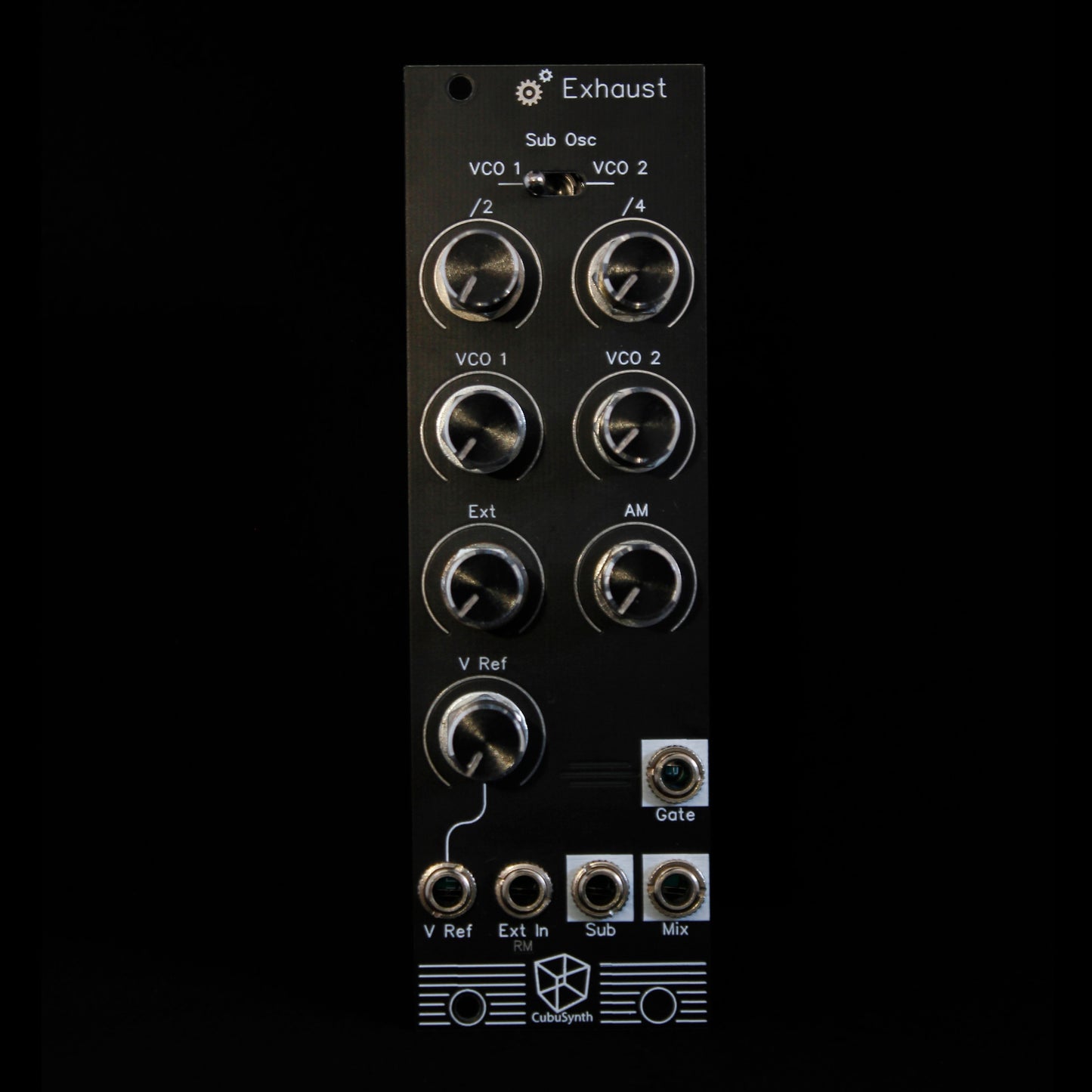

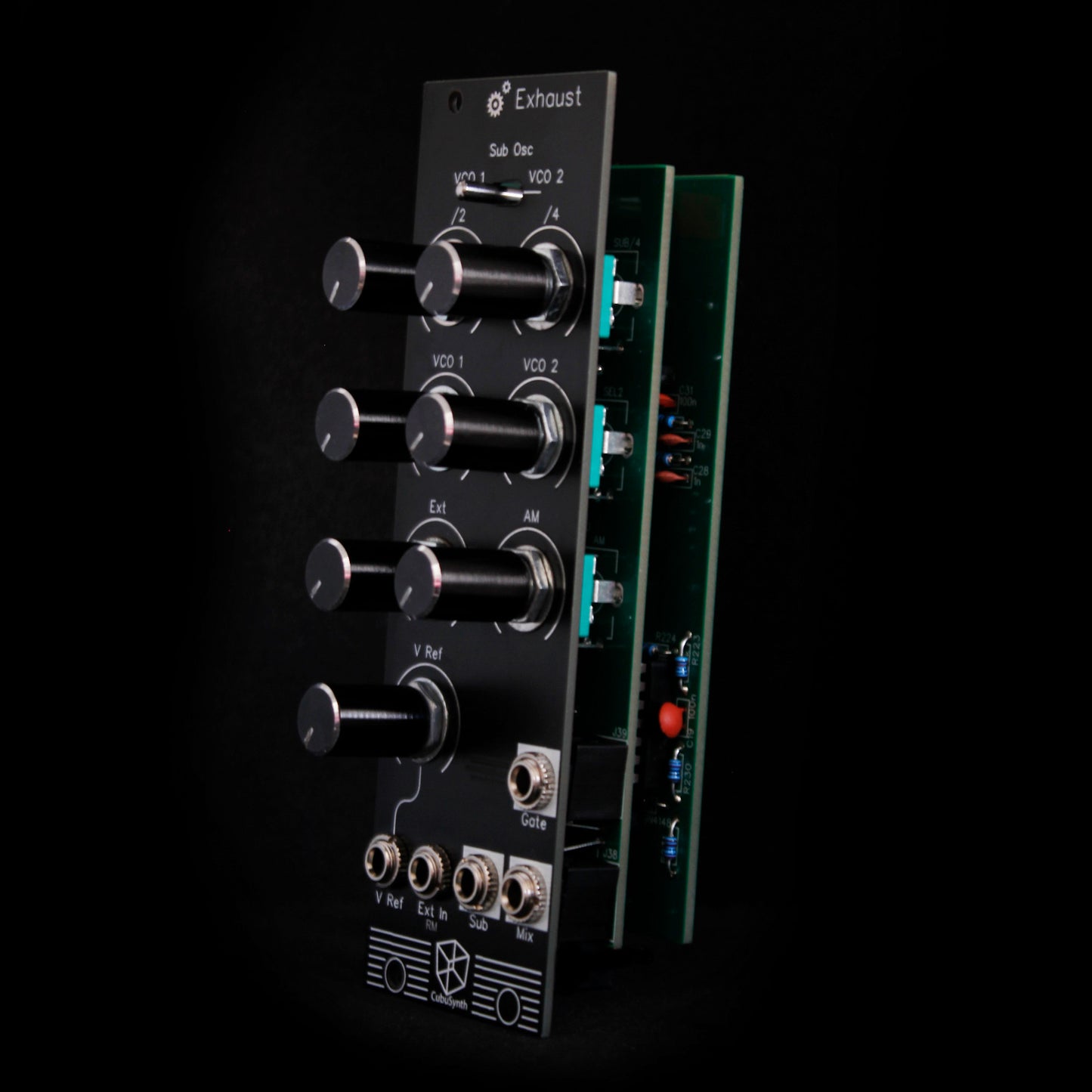

The Exhaust adds some functions and outputs to your Engine VCO.

It features a Sub-Octave generator, switchable from VCO1 or VCO2, with 2 Suboctaves mixed by volume knobs. The Sub Output is the resulting Mix of the 2 octaves. They are also routed to the Mix Output.

The Ext Input is normalized from the Engines RM Output. When inserting a cable it will stop this connection, which allows for any other signal to be mixed into the Main Mix Output.

The Chaos Signal from the Engine Module is taken to generate "Random" Gates, whenever the Signal is higher in Voltage than the setting of V Ref. You can think of it as a Probability Knob. The Chance to get Gate signals can also be CV controlled via the V Ref Input Jack.
