CubuSynth - ARKARION

Key features

• Fully featured analog synthesizer voice
• Digitally controlled signal routing ("DNA" patch system)
• 2 Analog VCOs with selectable waveforms
• MIDI Input with pitch CV and gate outputs
• Envelope Generator with Rise/Fall, loop or gated loop modes
• 2 Modulation Sources (VCLFOs)
• Random Voltage Source, triggered by Gate Input
• Multimode Filter (LP, BP, HP, AP switchable)

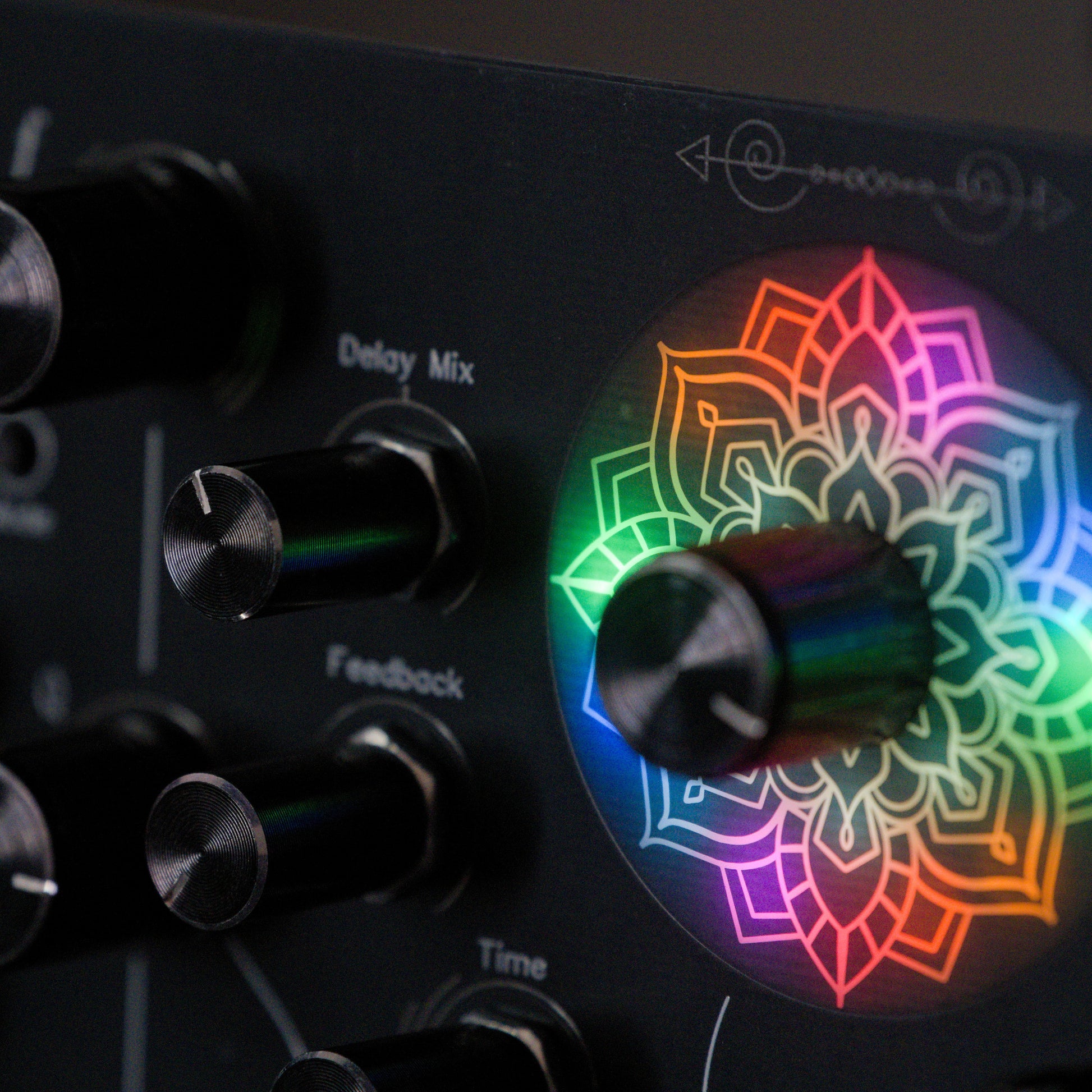

• Tape-Style Delay with CV-Control
• Gene Modification Knob for real-time sound shaping
• 16-bit randomizer: over 65,000 routing combinations

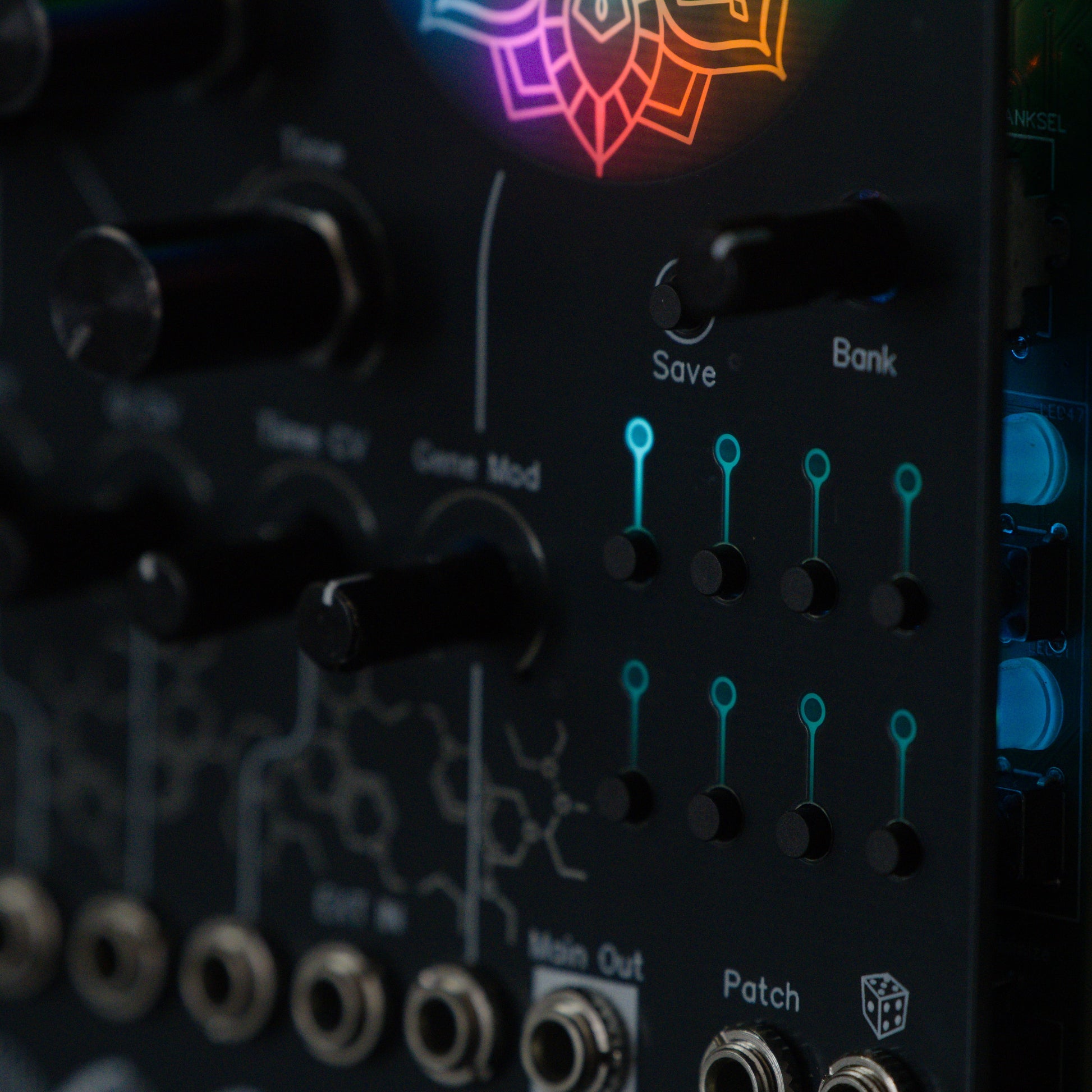

• 64 Patch Storage slots (8 banks of 8)
• 2 Internal VCAs for controlling modulation strengths
• Randomization of internal routing via button press or gate input
• LED visualization of patch state and Modulations


Specifications

- Size: 42HP x 3U / 213mm x 129mm
- Depth: 24mm (measured from the front panel)
- Max. Current Draw:
+12V: +200mA
-12V: -110mA

Fully featured Analog Synth voice with digital Control over Signal flow

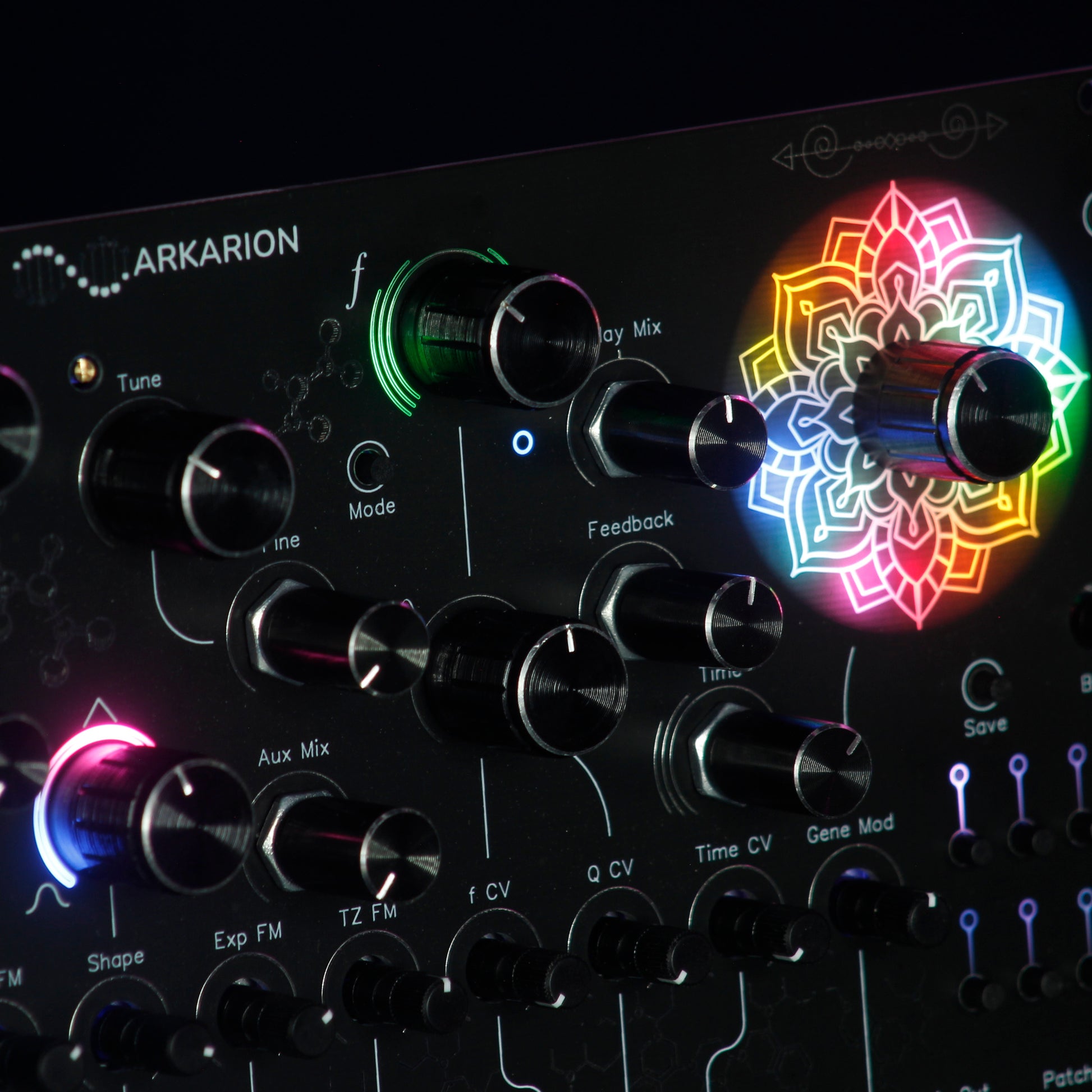

The ARKARION is a complete analog synthesizer voice, housed in a Eurorack module, with digitally controlled signal routing. It combines the tactile experience of analog patching with the generative potential of randomized patches, all controlled via a single button or external gate signal.
Inspired by a fictional "DNA synthesis" concept, the ARKARION interprets a virtual genetic code to define routing schemes for CV and audio. This allows complex, evolving sound design with minimal patching.
This synthesizer is designed for users seeking a unique blend of structure and chaos, combining traditional subtractive synthesis elements with a digitally modulated signal flow. Whether played from a MIDI source, sequencer, or by hand, the ARKARION delivers a wide range of timbres, from tightly controlled tones to wild and unpredictable textures.

ARKARION draws its name from two ideas:

Ark: the vessel, keeper of essence
Karion (from karyon): the core, the nucleus of identity

Together, they form the concept of a living vault—an ever-changing essence that holds countless versions of you, yet always remains true to your core, yourself.

You are never the same.
But you are always yourself.

Just like ARKARION

https://youtu.be/iFYTAUMuNaE

https://youtu.be/TERZJ_GJQ74

What's included?
Built Module:
- Assembled and Calibrated Module
- Power Cable
- Rack Screws
- MIDI TRS Adapter

Full DIY KIT:
- All components and PCBs to build the module
- Cable + Screws
- MIDI TRS Adapter

PCB+Panel:
- Main PCB with all SMD Pre-soldered
- Front Panel

User manual
