CubuSynth - 4 Cubed Collection (DIY)

DIY versions of the CubuSynth 4 cubed modules / built version here

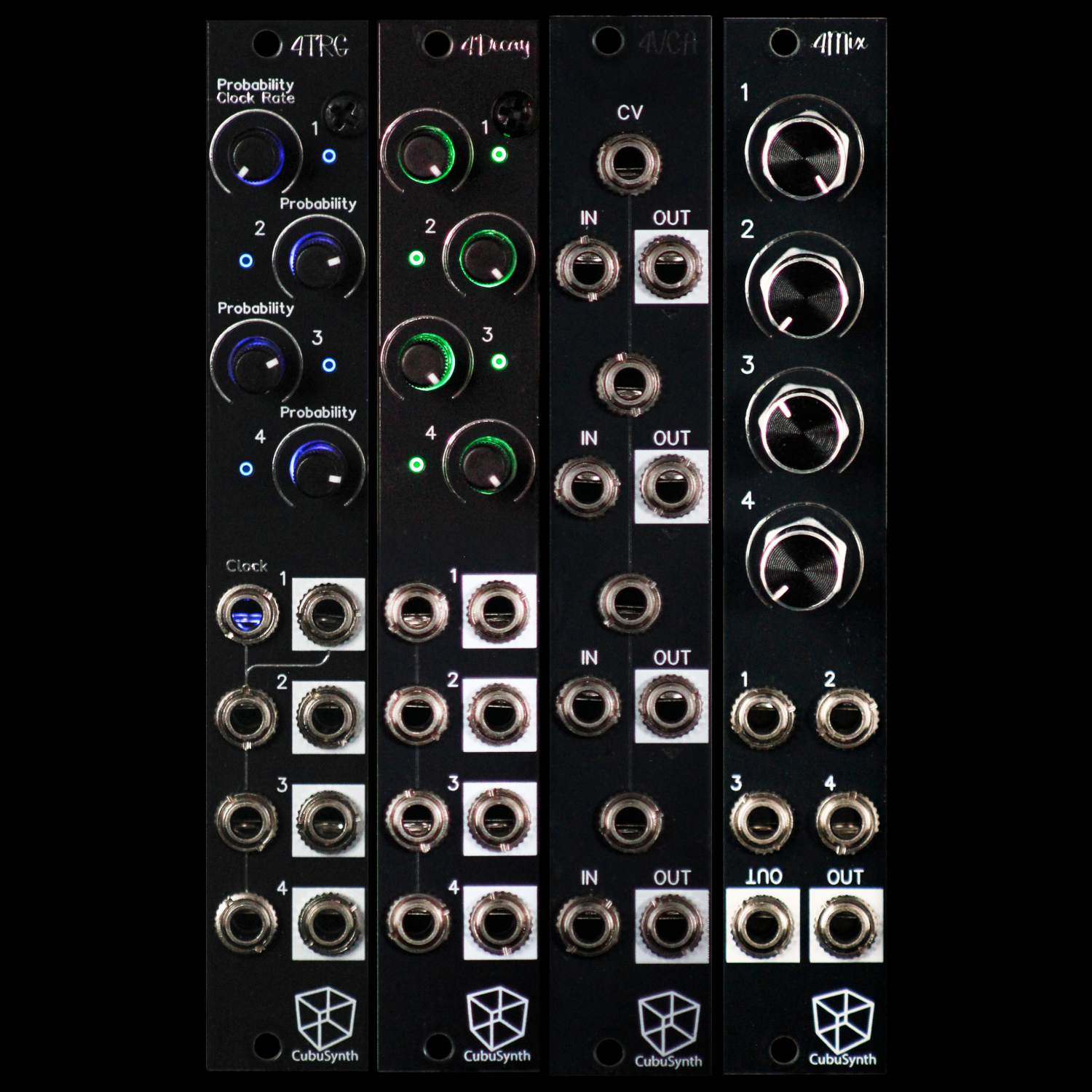

The 4 Cubed collection was designed to cover some of the most needed functions for eurorack in a small, and easy to DIY format.

It features Clock generation with probability, Decay envelopes, VCAs and Mixing.

• 4hp / 4channels each

• single SMD PCB designs

• Essential tools for every eurorack system

• Super easy to solder (all SMD pre-soldered)

Difficulty Level: 1/10
Build Time: ~0.5 hours
Easy build /only need to solder Jacks, Potentiometers, LEDs, Power header

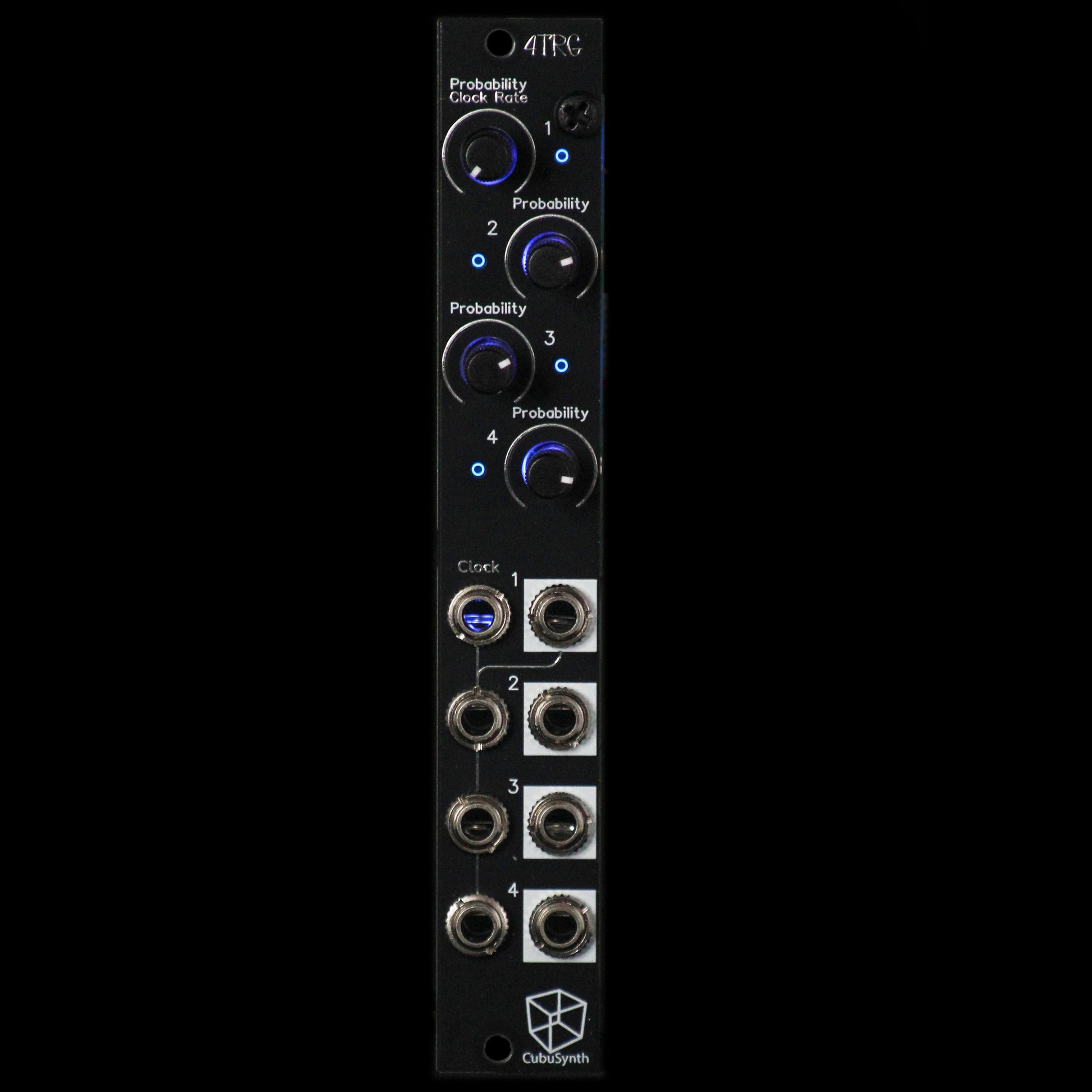

4TRG - Quad channel Probability Gate Skipper

• Size: 4 HP / 20 mm
• Depth: 24 mm (measured from the front panel)
• Current Draw:
   +12V: +40 mA
    -12V: -30 mA
DIY Component count: 20

Modulargrid

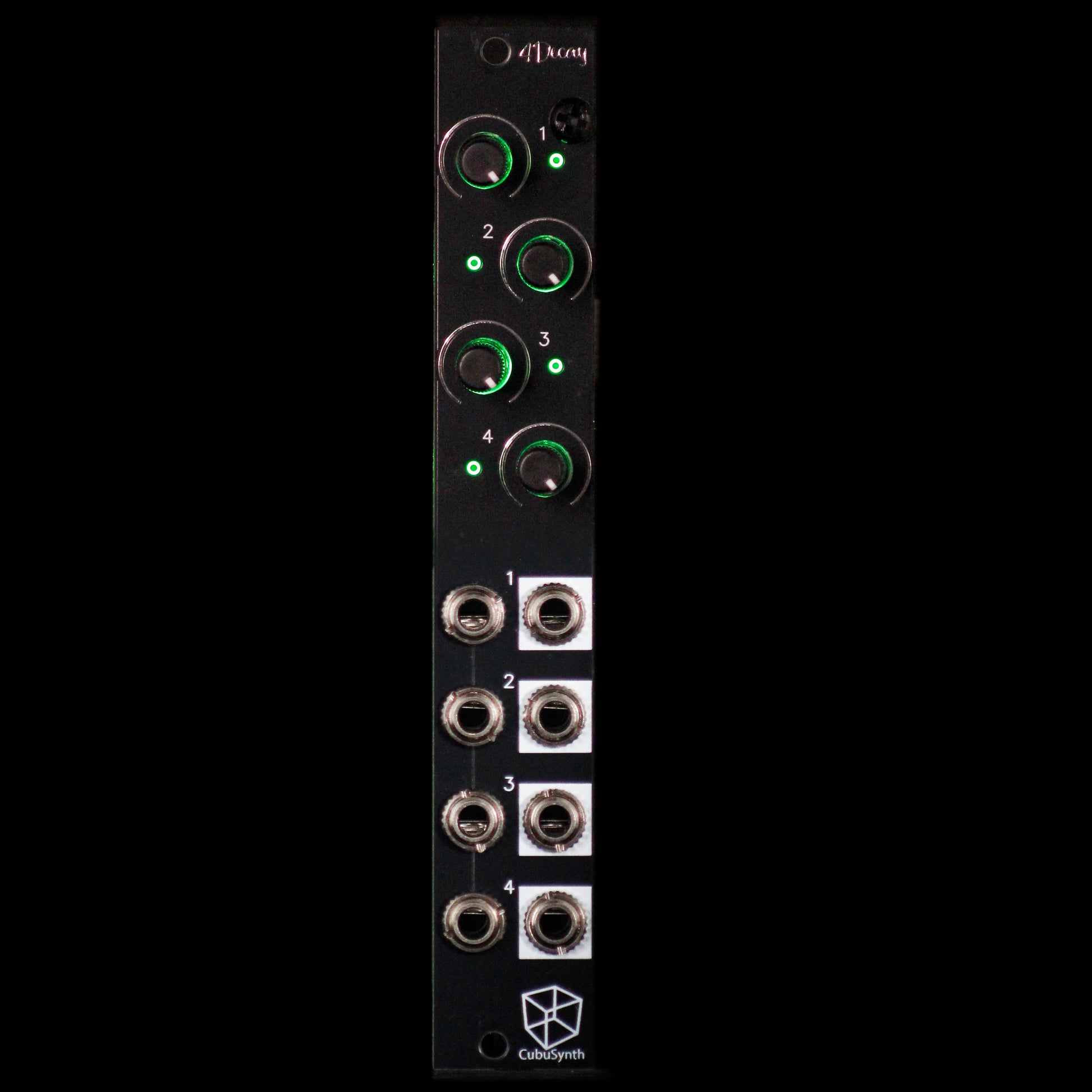

4Decay - Quad Analog Decay Envelope Generator

• Size: 4 HP / 20 mm
• Depth: 24 mm (measured from the front panel)
• Current Draw:
   +12V: +24 mA
    -12V: -0 mA
DIY Component count: 20

Modulargrid

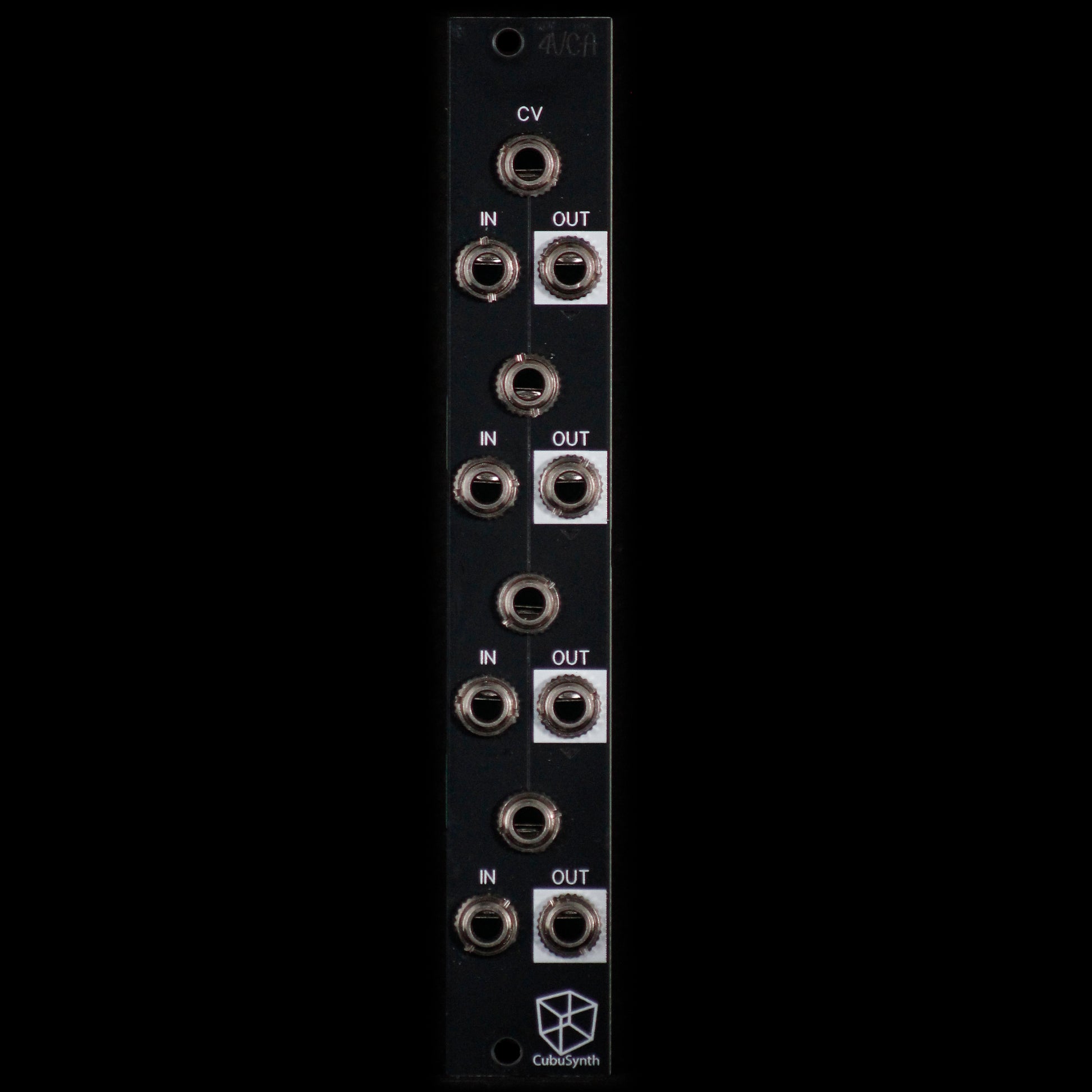

4VCA - Quad Audio/CV Analog Voltage controlled Amplifier

• Size: 4 HP / 20 mm
• Depth: 24 mm (measured from the front panel)
• Current Draw:
   +12V: +20 mA
    -12V: -24 mA
DIY Component count: 13

Modulargrid

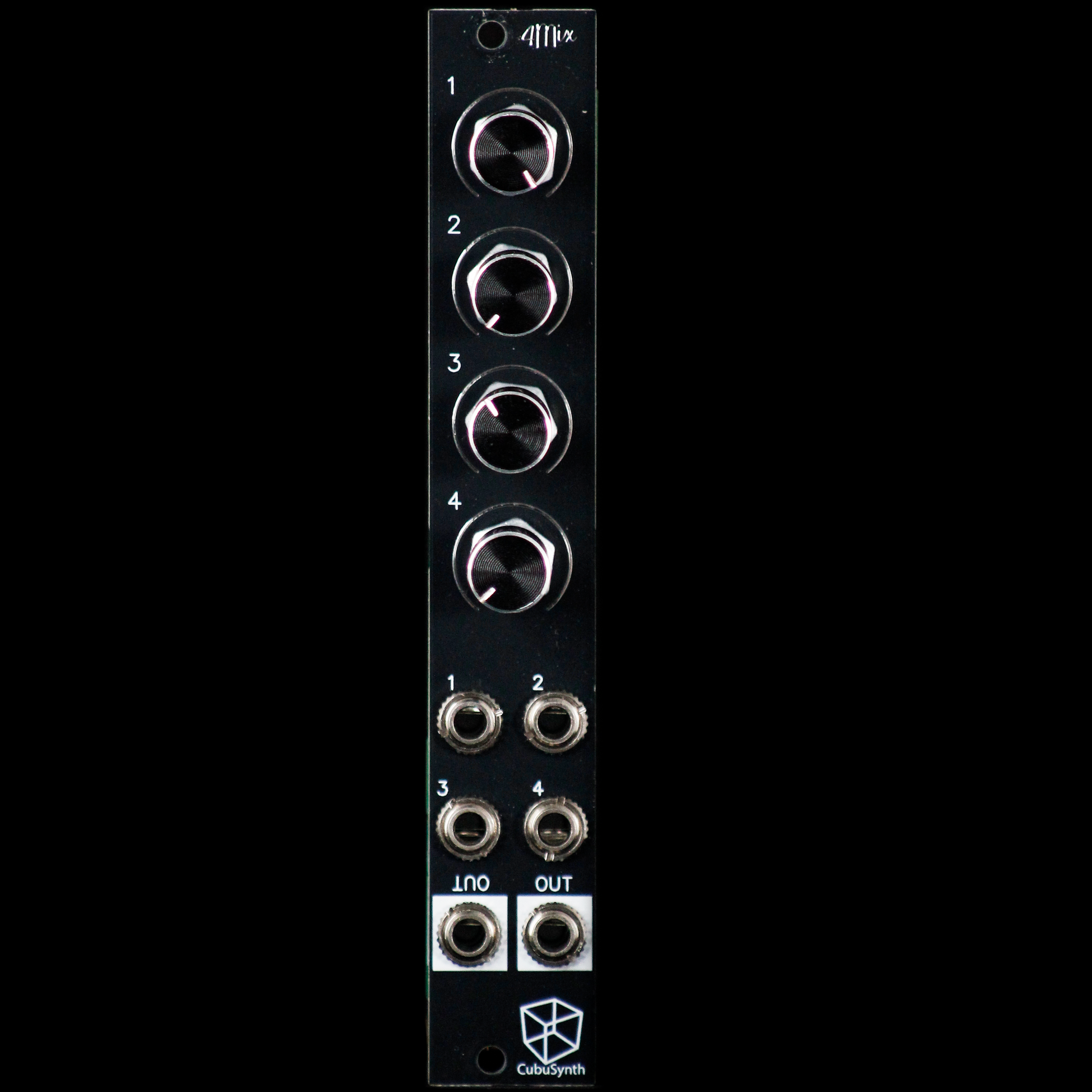

4Mix - Four channel Audio/CV Mixer

• Size: 4 HP / 20 mm
• Depth: 24 mm (measured from the front panel)
• Current Draw:
   +12V: +3 mA
    -12V: -3 mA
DIY Component count: 15

Modulargrid
