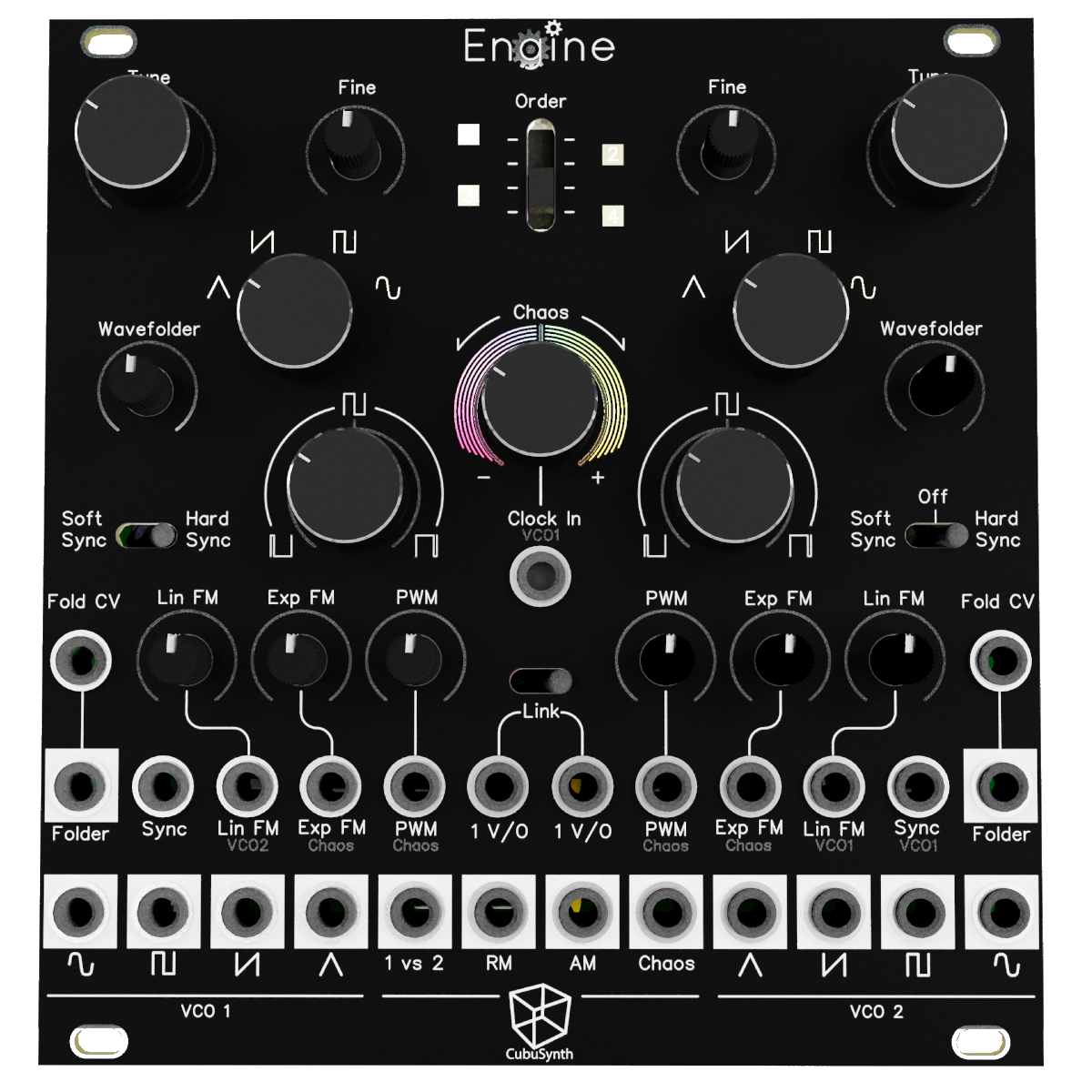

CubuSynth Engine
![](http://cubusynth.com/cdn/shop/files/CubuSynth_Engine_Render_small_36f688a7-9015-4dcf-95ef-ed317275eff0.png?v=1650192112&width=1500)
Complex analog dual VCO
Designed to bring a complex VCO, with a huge amount of possibilities and internal modulations to the DIY world, this module stands out for its visual appearence as well as its audible quality and possibilities
![](http://cubusynth.com/cdn/shop/files/Komp_1_gif.gif?v=1650615982&width=1500)
How it works
The CubuSynth Engine can work as 2 independent VCOs, or as a complex FM oscillator with its several modulated outputs.

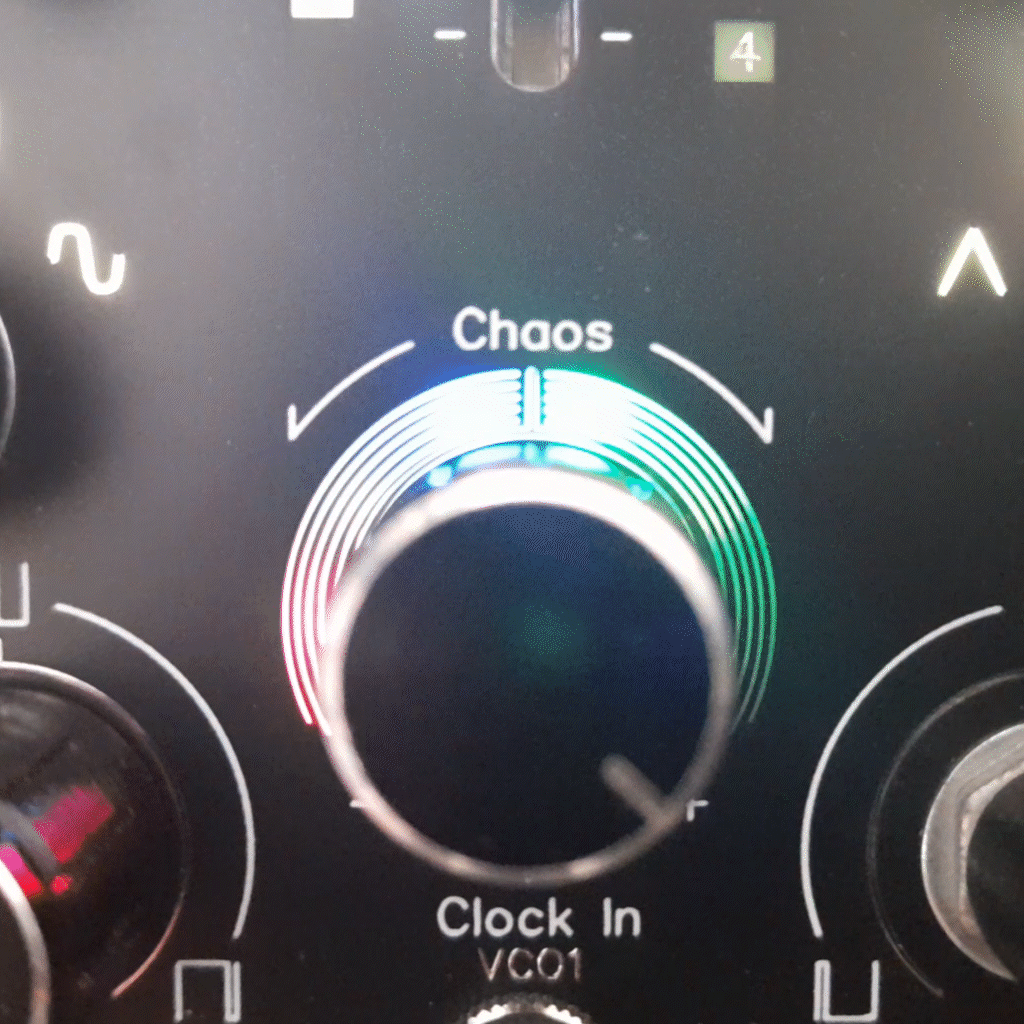

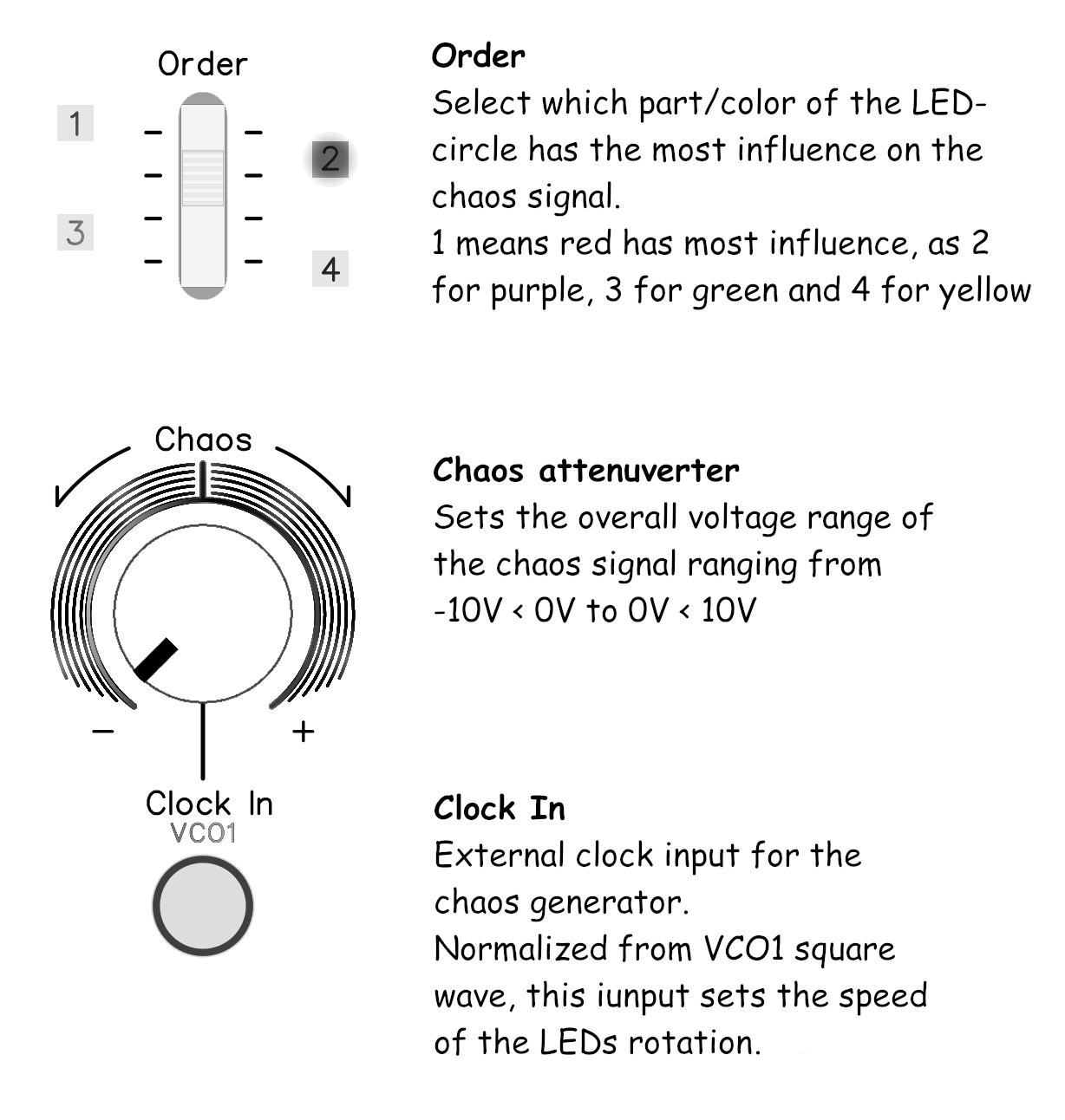

With its inernal "Chaos Engine" it creates semi-random voltages, generated by the 2 oscillator cores. This signal is then normalized to the CV inputs for Pulse width modulation and exponential FM.
Each of the 2 VCOs offers a switch to select one of the 4 waveshapes to be used by the wavefolders, and the linear FM input normalisations.
![](http://cubusynth.com/cdn/shop/files/Engine_Manual_Chaos.png?v=1654121135&width=1500)
